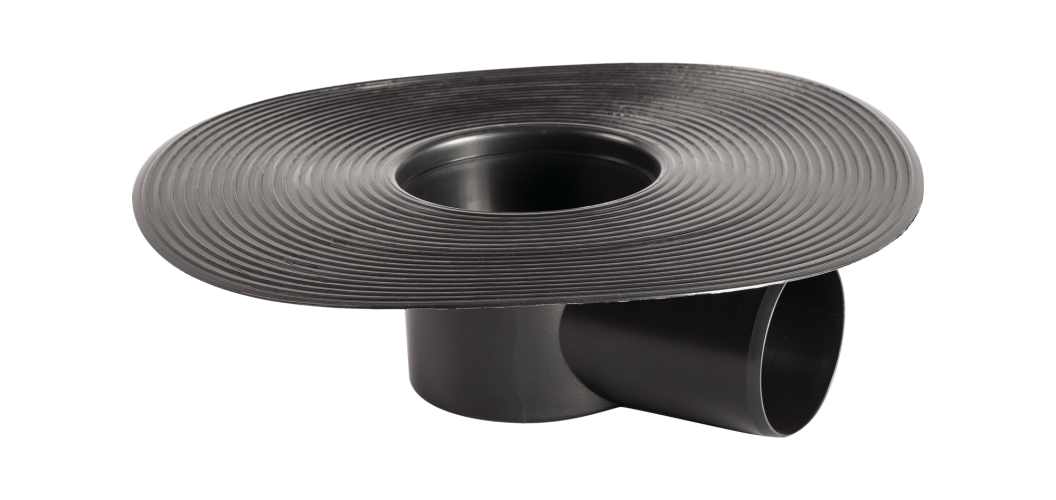

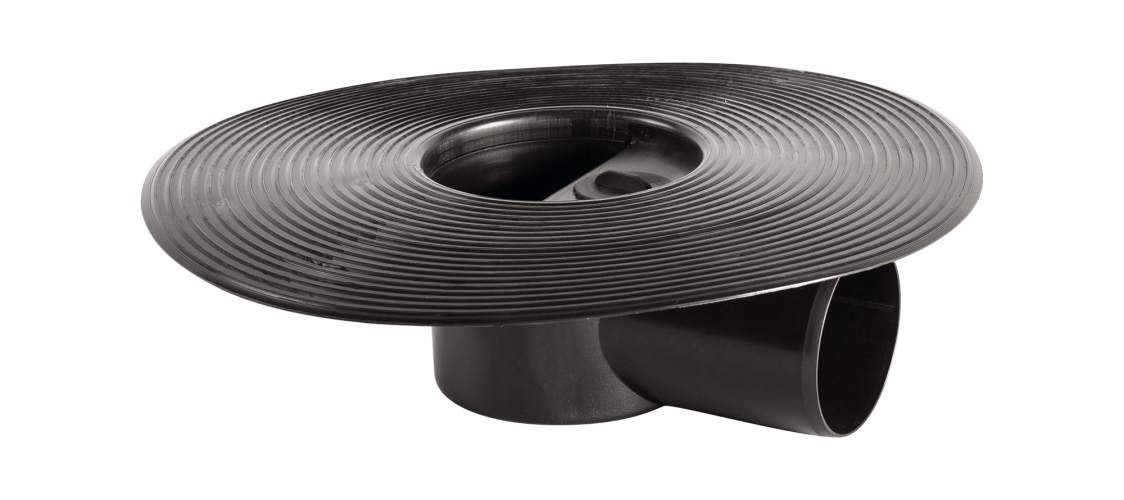

The DRAIN AND SIPHON UNIT WITH LATERAL DISCHARGER IN IGOM.EE is excellent for connections between the waterproofing materials and the down pipes themselves. It is suitable for use with all kinds of APP, SBS, modified bituminous membranes as well as liquid bitumen coatings.
This particular item has been studied right down to its smallest details so as to optimize its characteristics thus eliminating problems caused by traditional drains available in the market. The drain is made from IGOM.EE, a specially formulated compound of synthetic rubbers realized by ITALPROFILI® that allow to obtain high physical, chemical and technical properties. IGOM.EE is highly resistant to UV rays, ozone and other atmospheric and chemical agents. It can be used in a wide temperature range and it is stable over time thanks to its physical and mechanical properties, which therefore assure maximum performance throughout its lifespan. The drains consist of a cylindrical body with a lateral discharge pipe attached to a ribbed flange all made from the same materials to facilitate adhesion of the membrane. They are fitted with an adjustable bellows system for use with various thicknesses of paving materials and are available with ABS or stainless steel grilles. The siphon type drains are fitted with a plug for easy cleaning of deposits and can either be welded or sleeve fitted to curves and pipes with gaskets according to UNI EN 1451-1. They are suitable for use on flat roofs, patios, bathrooms, garages, laundry rooms etc.
NOTE: Siphon drain units should not be used in areas where freezing is likely to occur.
